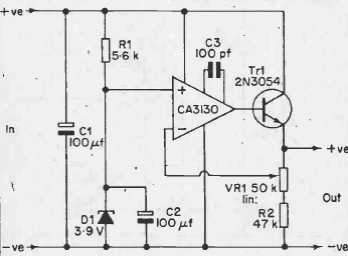

Using a CA3130 and a power transistor, this circuit can deliver a current of up to 500 mA with the indicated transistor. The circuit is from a 1977 documentation.
Constant current source (CB21992E)
- Details
- Written by: Newton C. Braga
Using a CA3130 and a power transistor, this circuit can deliver a current of up to 500 mA with the indicated transistor. The circuit is from a 1977 documentation.
