3-Transistor Amplifier (CB21818E)

Details
Written by: Newton C. Braga

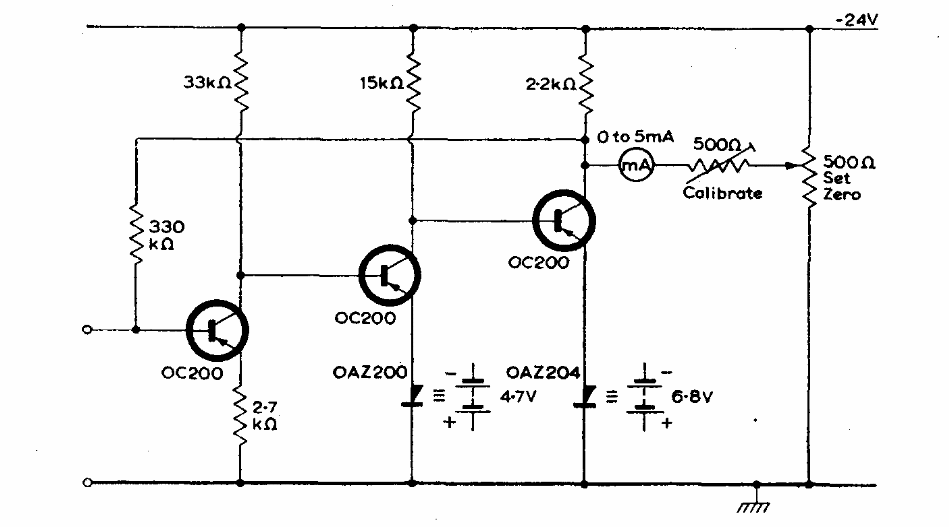

This direct-coupled amplifier was found in Mullard's 1960s transistor manual. The transistors are germanium from the time.
