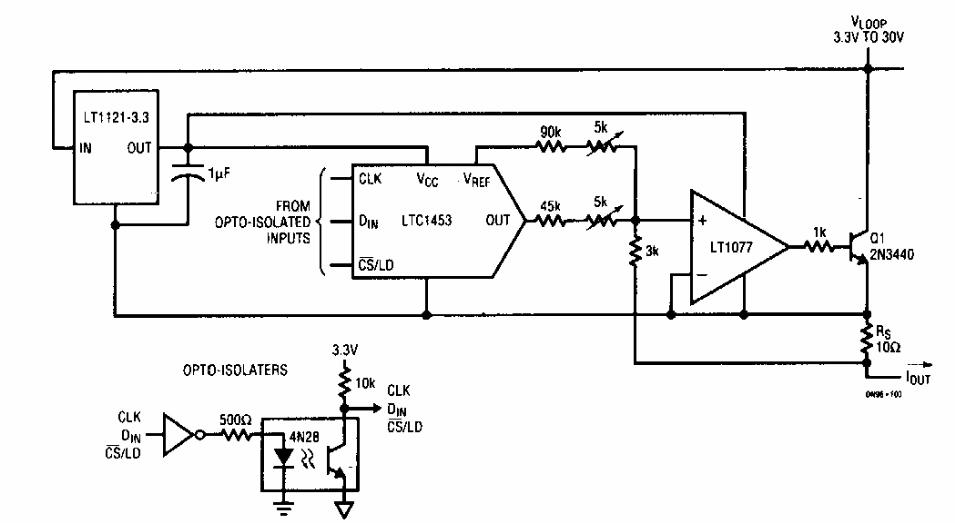

4 to 20 mA interface (CB21054E)

Details
Written by: Newton C. Braga



This circuit was obtained from a Linear Technology manual from the 90's. The integrated circuits are from the time and could possibly be tested as modern equivalents.
