Temperature control (CB21386E)

Details
Written by: Newton C. Braga

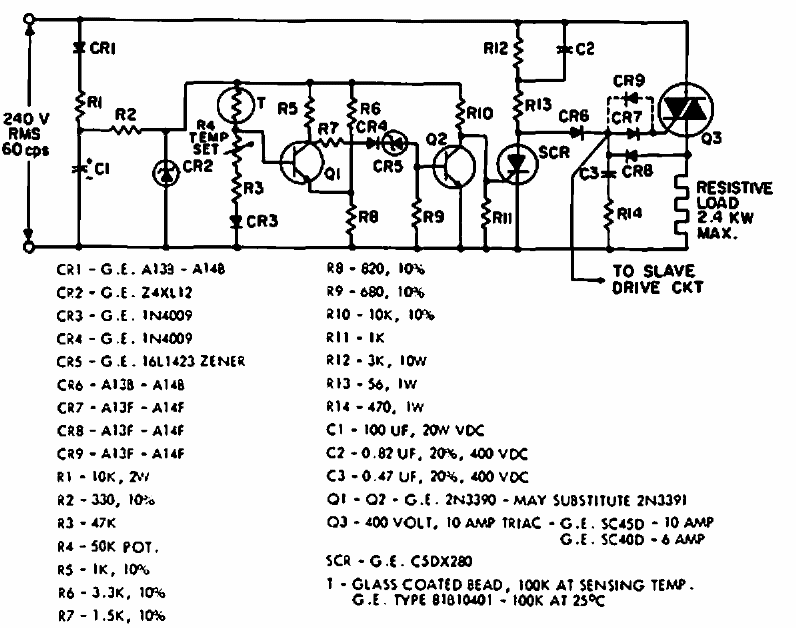

This semi-proportional temperature control was found in old American documentation. The components are from the period and the maximum power of 2.4 kW.




| Clique na imagem para ampliar |
