Dual Sensor (CB21521E)

Details
Written by: Newton C. Braga

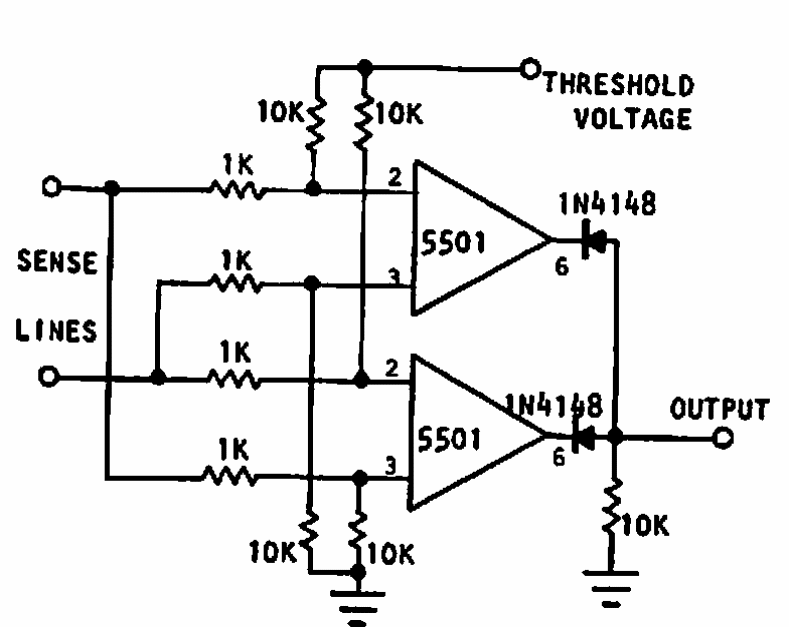

This circuit, with two operationals, was obtained from an old American publication. Operational amplifiers can be of modern equivalent types.
