455 kHz generator (CB21578E)

Details
Written by: Newton C. Braga

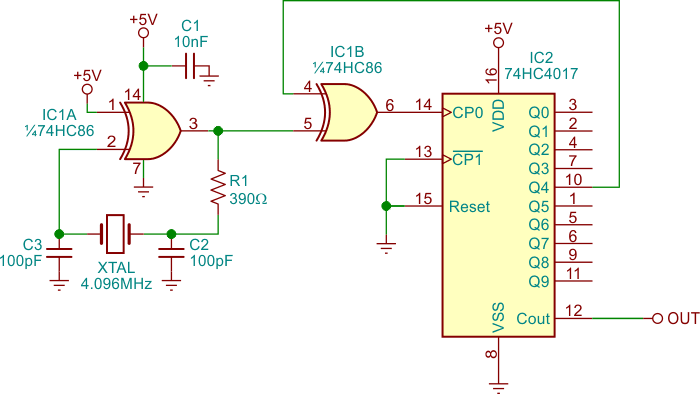

This 455 kHz IF calibration circuit uses a 4,096 MHz crystal. The circuit can be powered by voltages from 5 to 9 V.




| Clique na imagem para ampliar |
