Active audio filter (CB21770E)

Details
Written by: Newton C. Braga

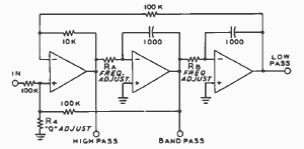

This circuit was found in a 1977 documentation for radio amateurs. Integrated circuits are common operational amplifiers.
