Full wave control with SCR (CB21094E)

Details
Written by: Newton C. Braga

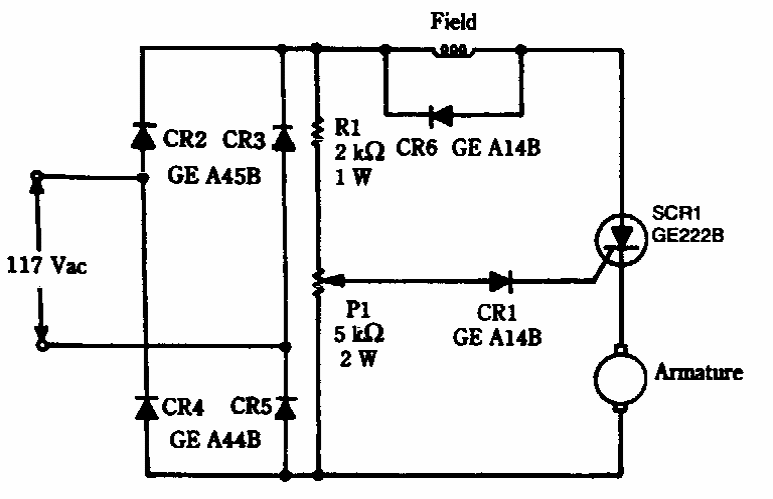

This circuit is from an American documentation from the 90's. The SCR can be of any type and the diodes must have current according to the controlled motor.




| Clique na imagem para ampliar |
