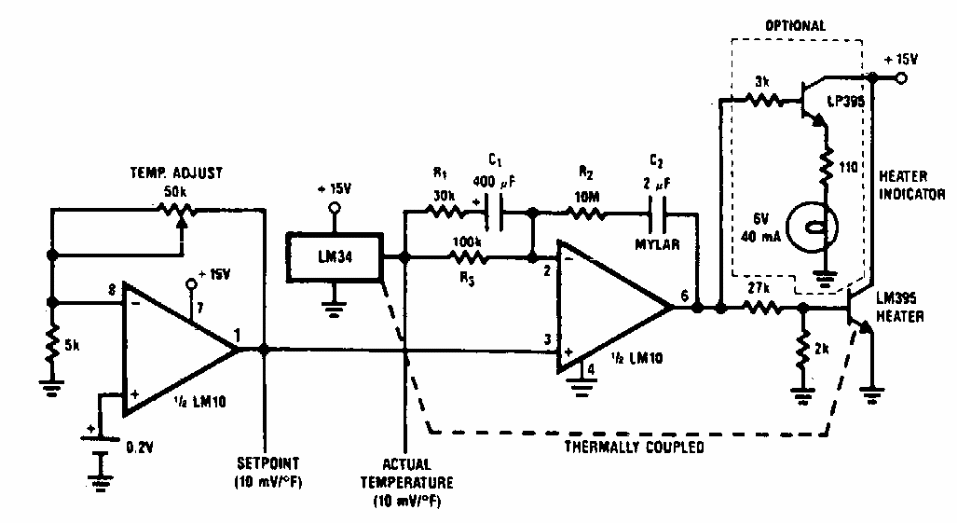

Temperature controller (CB21286E)

Found in National Semiconductor documentation from the 1990s, this circuit can be implemented with equivalent modern components.

| Clique na imagem para ampliar |
