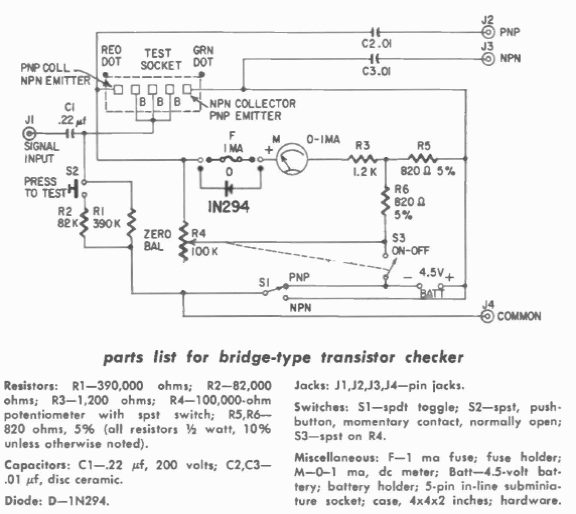

This bridge circuit was found in a 1960s book by Gernsback. The circuit tests general-purpose NPN and PNP transistors at the time and can also be used with some current types.
Transistor tester (CB21669E)
- Details
- Written by: Newton C. Braga
This bridge circuit was found in a 1960s book by Gernsback. The circuit tests general-purpose NPN and PNP transistors at the time and can also be used with some current types.
