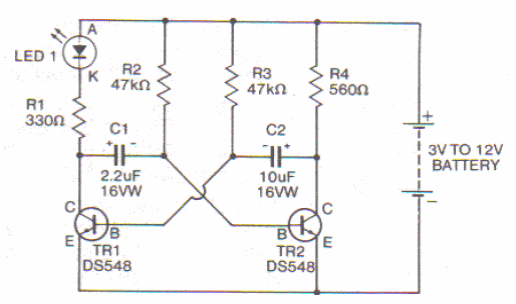

This simple circuit causes an LED to flash at times whose active cycle is determined by C1 and C2. Transistors can be BC548.
