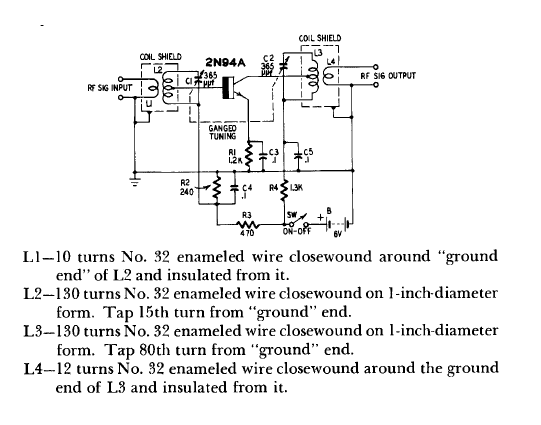

This mid-frequency amplifier circuit was found in an American publication from the 1950's. The transistor is from the time and data on the coils are provided.
IF Stage (CB22240E)
- Details
- Written by: Newton C. Braga
This mid-frequency amplifier circuit was found in an American publication from the 1950's. The transistor is from the time and data on the coils are provided.
