Bias box (CB23603E)

Details
Written by: Newton C. Braga

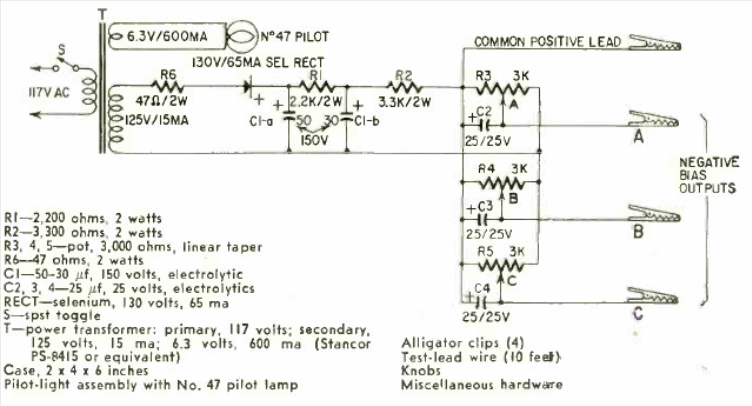

This circuit was found in the May 1959 Radio Electronics magazine. Its purpose is to provide bias voltages for circuits under test. The circuit is isolated from the power grid.
