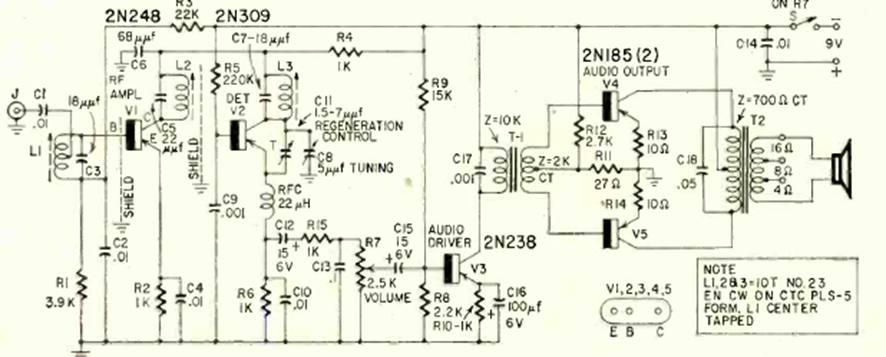

This 5-transistor receiver was obtained from an article in the February 1969 Radio Electronics magazine. The circuit has a class B audio stage and 3 transistors in the previous stages, presenting a good gain at 30 MHz.
