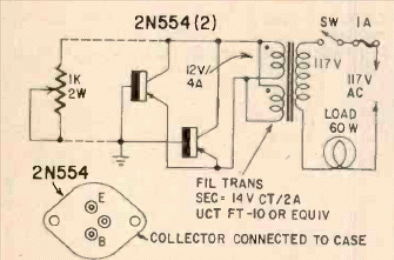

This circuit was found in Radio Electronics magazine from January 1959. The power transistor must be mounted on a heat sink. The maximum load reaches 100 W.
Power control (CB23586E)
- Details
- Written by: Newton C. Braga
This circuit was found in Radio Electronics magazine from January 1959. The power transistor must be mounted on a heat sink. The maximum load reaches 100 W.
