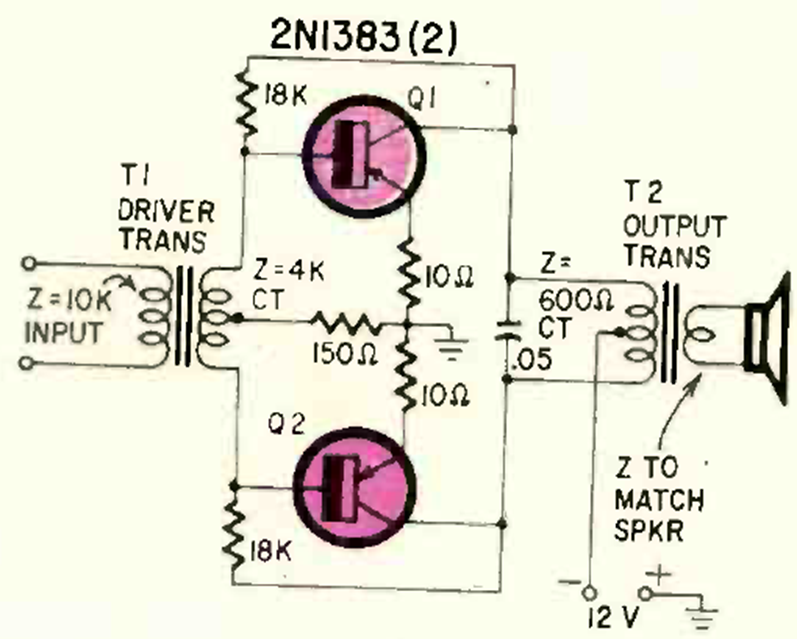

This power stage with two transistors was found in Radio Electronics magazine from October 1963. The transistors must be equipped with heatsinks and the supply voltage is 12 V.
| Clique na imagem para ampliar |
Two transistors power stage (CB23532E)
- Details
- Written by: Newton C. Braga
