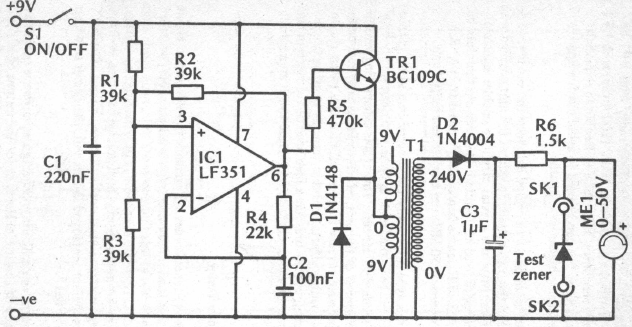

This zener test circuit was found in an English publication from 1989. The circuit tests zener up to 50V using a voltage inverter with a common transformer. The transistor is a general-purpose type.
Zener Diode Tester (CB22160E)
- Details
- Written by: Newton C. Braga
