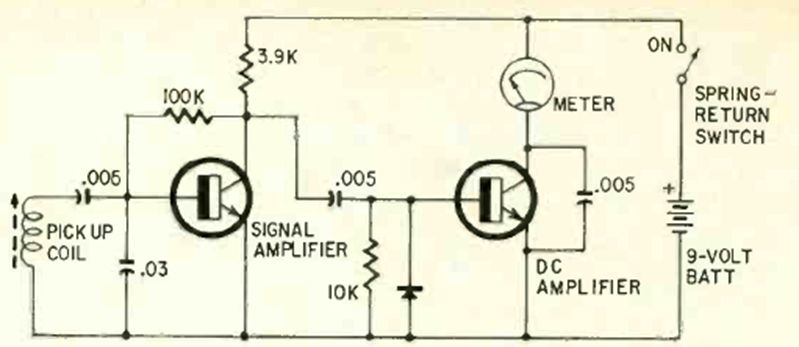

We found this circuit in a Radio Electronics from October 1965. The pickup coil can be of the telephone type and the instrument is a micro or milliammeter that should preferably have a current limiting resistor in series.
