Programmed Oscillator (CB22404E)

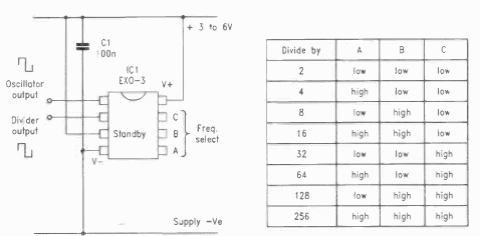

This circuit was found in an English documentation from the 90's. The circuit has the frequencies programmed according to the table.
