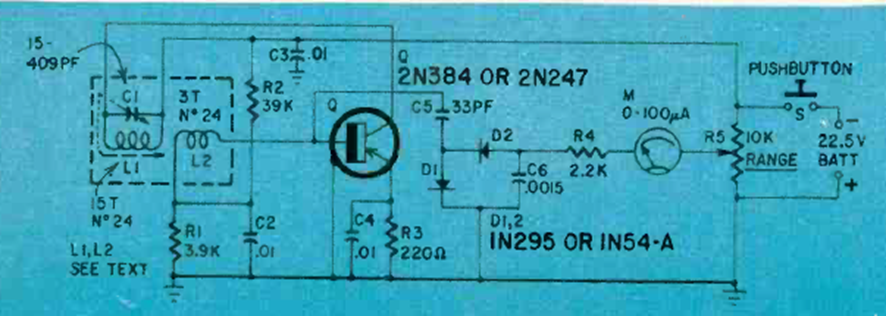

This oscillator with base current drop can be used like the well-known grid-dip meters, but which are based on valves. The circuit is from a Radio Electronics from June 1963. The transistor is a type of germanium from that time. The coils depend on the desired operating frequency.
