Variable pulse generator 2N2646 (CB23921E)

Details
Written by: Newton C. Braga

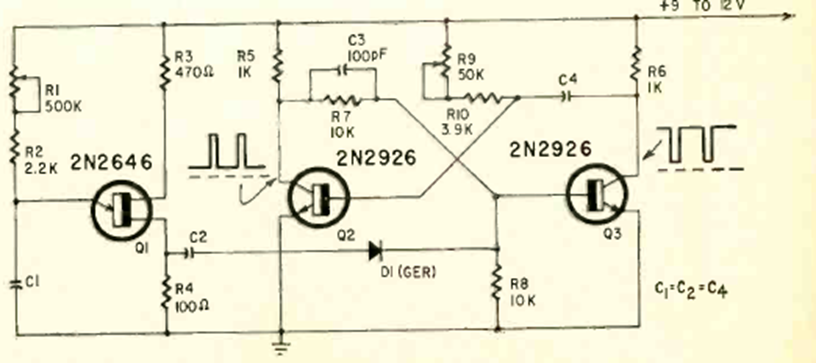

This unijunction transistor circuit was found in Radio Electronics magazine from July 1968. The circuit operates up to approximately 100 kHz depending on C1.




| Clique na imagem para ampliar |
