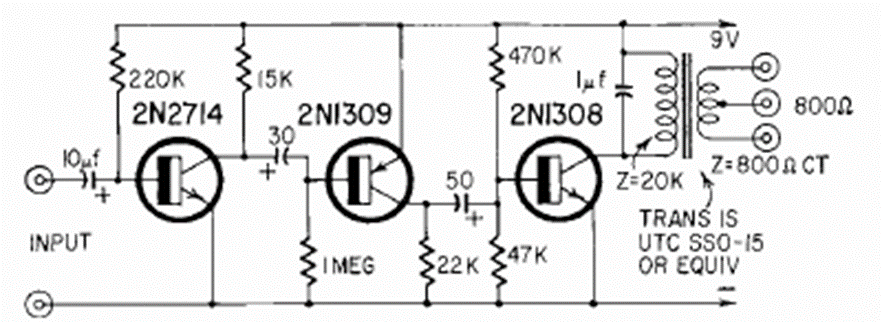

This “brainwave” amplifier was published in Radio Electronics magazine in August 1964. The transistors are contemporary, and the circuit amplifies low-frequency signals into a recorder. The power supply is 9 V.
| Clique na imagem para ampliar |
ECG Amplifier (CB23585E)
- Details
- Written by: Newton C. Braga
