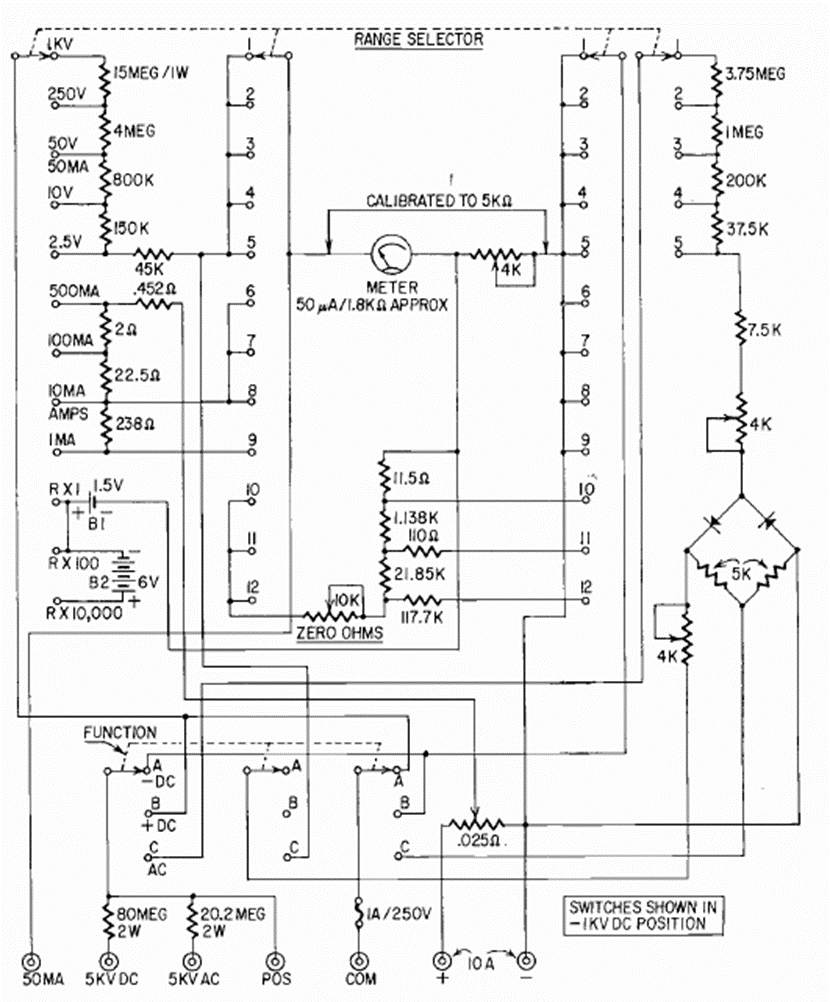

This is the complete circuit of a multimeter using a 50 uA instrument with a 2k coil. The circuit combines the previous four and has additional features such as alternating voltage scales. We also have an additional 6 V battery for high resistance measurements.
