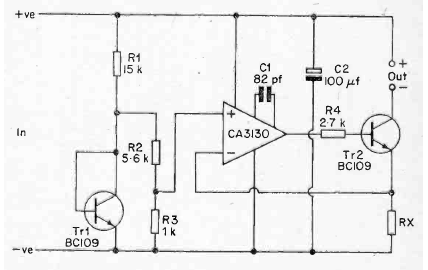

This circuit can limit a current in a load. The circuit is from a 1977 publication. The operational amplifier is the CA3130, and the transistor can be a BC549 for 100 mA of maximum current and a BD135 for 500 mA.
Current limiter (CB22011E)
- Details
- Written by: Newton C. Braga
