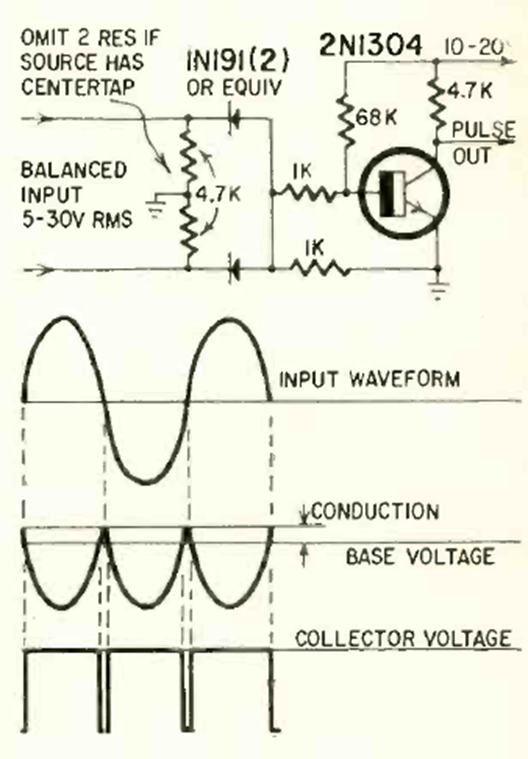

We found this circuit in a Radio Electronics from June 1967. The transistor was in general use at the time. Observe the waveforms obtained from a sinusoidal signal.
