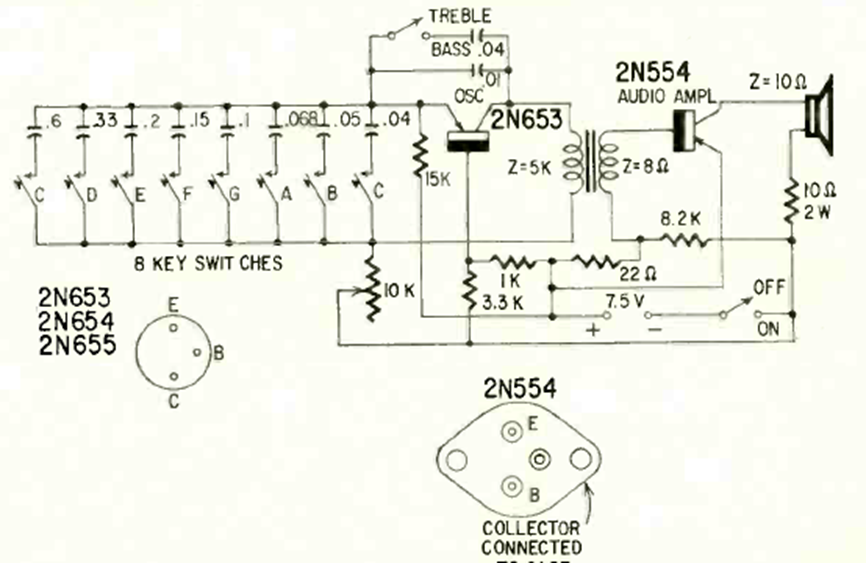

We found this simple toy organ circuit in the February 1968 issue of Radio Electronics magazine. The transistors were common at the time and the transformer was from a transistor radio output.
