4 transistor radio (CB22168E)

Details
Written by: Newton C. Braga

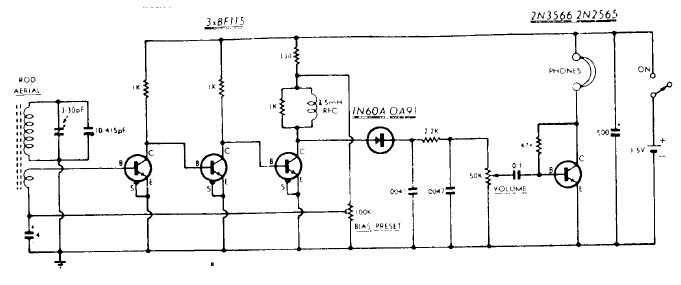

We found this circuit in an English publication from the 60's. The transistors are of germanium of the time and the headphones must be high impedance magnetic.
