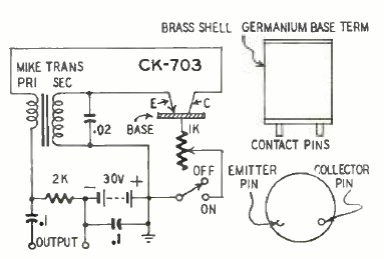

This is the first transistorized circuit published in the Radio Electronics magazine from over 1950. It is a simple audio oscillator that can be used as a signal injector. The transformer provides the feedback. Note that the base is the shell.
