Rectangular oscillator 2N2646 (CB23920E)

Details
Written by: Newton C. Braga

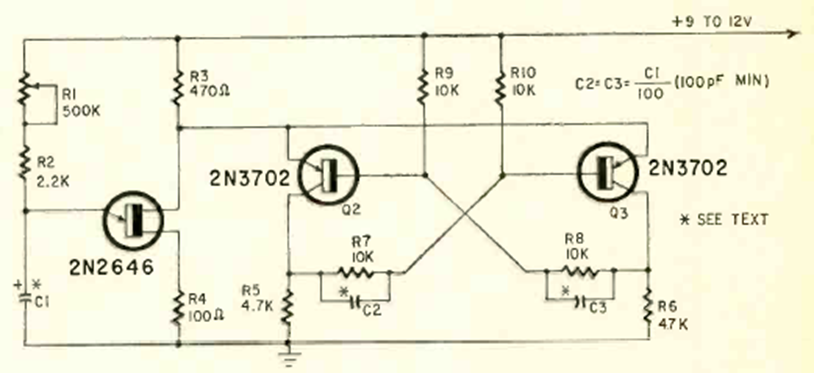

The difference between this circuit and the previous one is that it uses PNP transistors. The circuit is from Radio Electronics magazine from July 1968. The frequency depends on R1 and C1.
