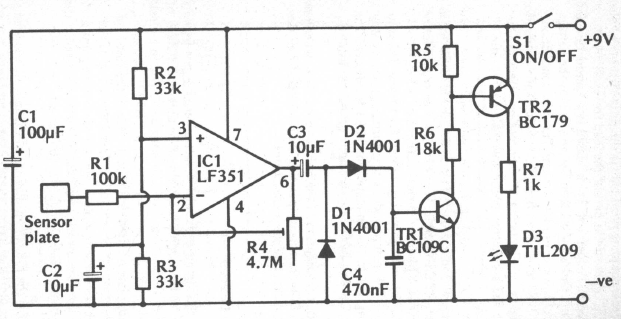

This proximity sensor was found in old documentation. The transistors can be BC548 or BC558 for the PNP and the op amp supports an equivalent.
Proximity switch (CB22211E)
- Details
- Written by: Newton C. Braga
This proximity sensor was found in old documentation. The transistors can be BC548 or BC558 for the PNP and the op amp supports an equivalent.
