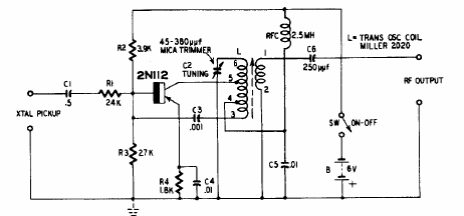

This circuit transmits signals from a turntable to a nearby AM radio. The circuit is from a documentation from the 60's. The transistor used is a germanium type of the time.
Phonographic Oscillator (CB22334E)
- Details
- Written by: Newton C. Braga
This circuit transmits signals from a turntable to a nearby AM radio. The circuit is from a documentation from the 60's. The transistor used is a germanium type of the time.
