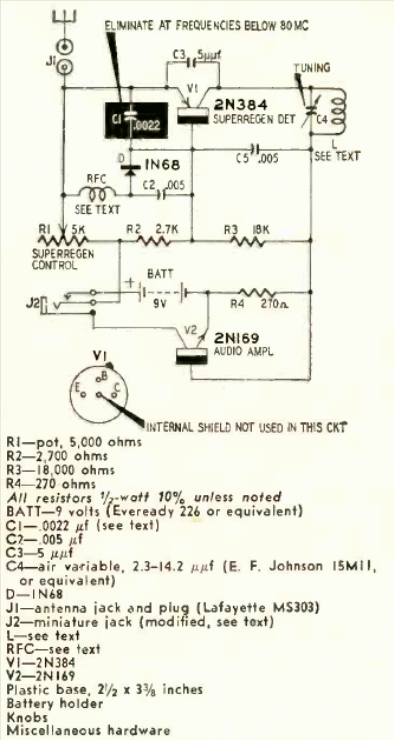

This 2-transistor circuit was found in the March 1958 Radio Electronics magazine. The coil determines the tuning range. Listening is on high impedance headphones.
FM super regenerative (CB22547E)
- Details
- Written by: Newton C. Braga
This 2-transistor circuit was found in the March 1958 Radio Electronics magazine. The coil determines the tuning range. Listening is on high impedance headphones.
