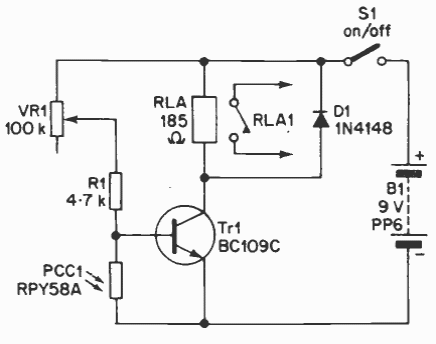

We found this circuit in an old English publication. The sensor is a common LDR. and the sensitivity adjustment is done in VR1. The power supply can be between 6 and 12 V depending on the relay.
Shadow Relay (CB22055E)
