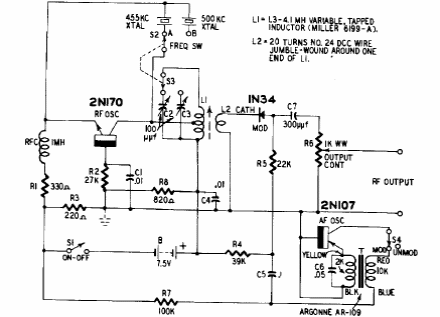

This circuit was found in an American documentation from the 60's. The circuit generates two frequencies for calibration and is modulated with an audio signal. Transistors are from the time.
Crystal Calibrator (CB22317E)
