CMOS Timer (CB22179E)

Details
Written by: Newton C. Braga

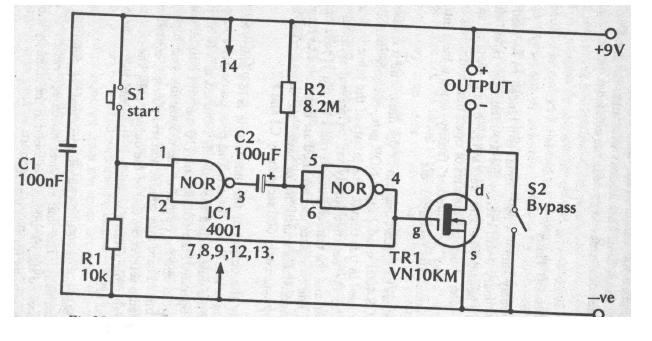

This timer was found in English documentation from the 80's. The integrated circuit is common nowadays and the MOSFET admits equivalent according to the controlled load.




| Clique na imagem para ampliar |
