Automotive tachometer (CB23823E)

Details
Written by: Newton C. Braga

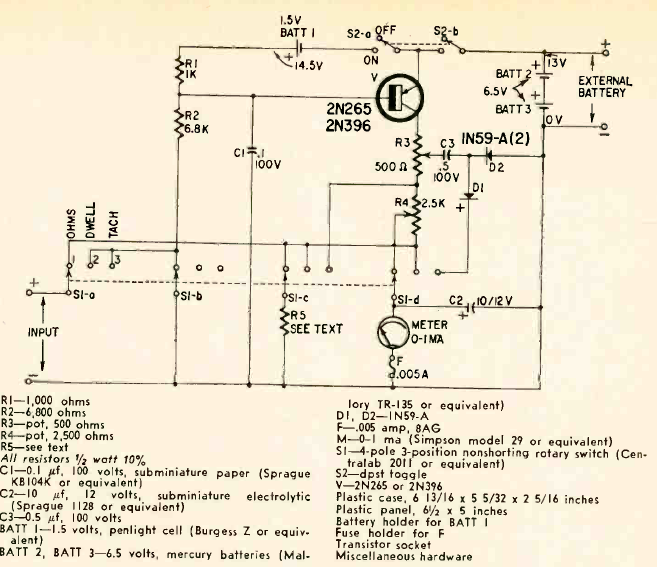

This circuit was found in a Radio Electronics magazine from June 1962. The circuit is for cars of the time with platinum ignition. The indication is made on an analog instrument.
