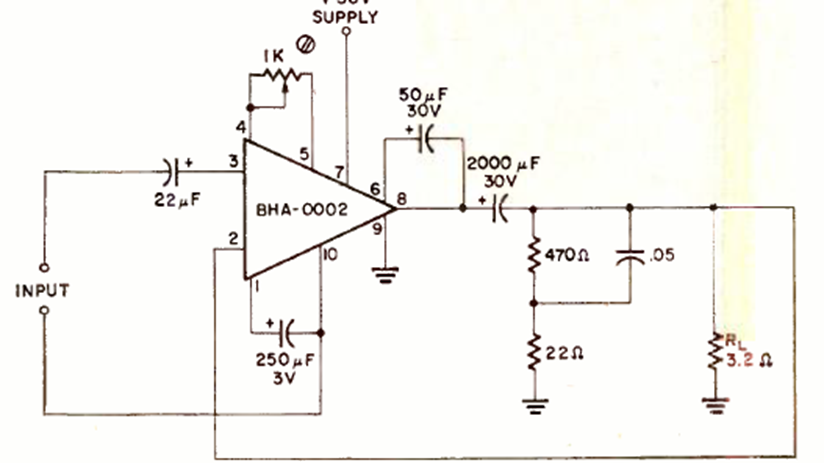

This circuit is from a Radio Electronics from September 1969. The integrated circuit used is one of the first power integrated circuits available on the market. The circuit follows a configuration that lasted for a long time.
| Clique na imagem para ampliar |
