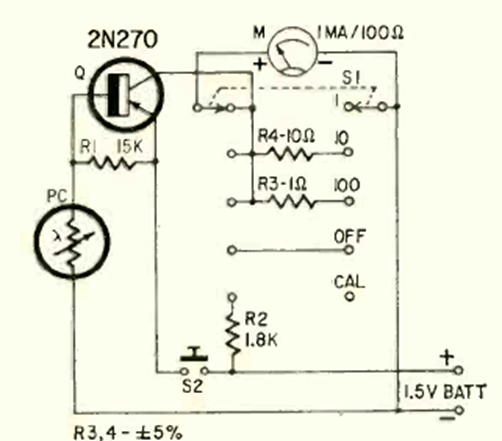

This circuit from a Radio Electronics from February 1966 uses an LDR as a sensor. The transistor is a general purpose type at the time and several sensitivity scales are selected by a switch.
Sensitive photometer (CB23701E)
- Details
- Written by: Newton C. Braga
