Model railway control (CB23583E)

Details
Written by: Newton C. Braga

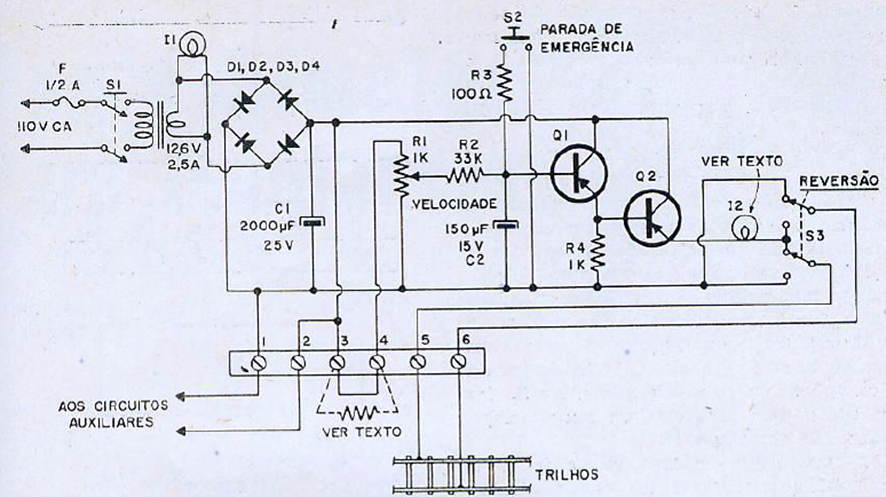

This circuit is from documentation from 1965 but can be easily implemented today using modern transistors. We can use BD136 for Q1 and TIP42 for Q2. The TIP must be equipped with a heat sink.




| Clique na imagem para ampliar |
