50W Inverter (CB23932E)

Details
Written by: Newton C. Braga

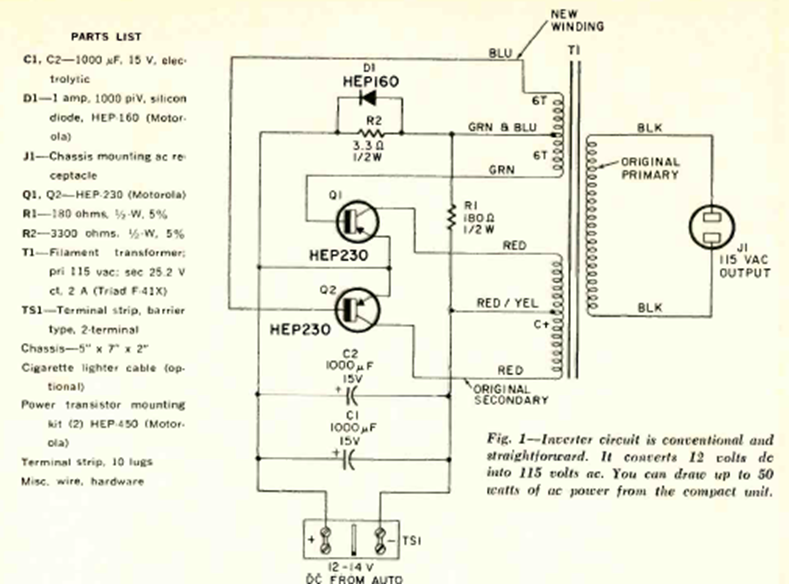

This circuit supplies 115 VAC (not perfectly sinusoidal) from a car battery. The circuit is from a Radio Electronics from December 1968.
