33 dB gain Audio Stage (CB23531E)

Details
Written by: Newton C. Braga

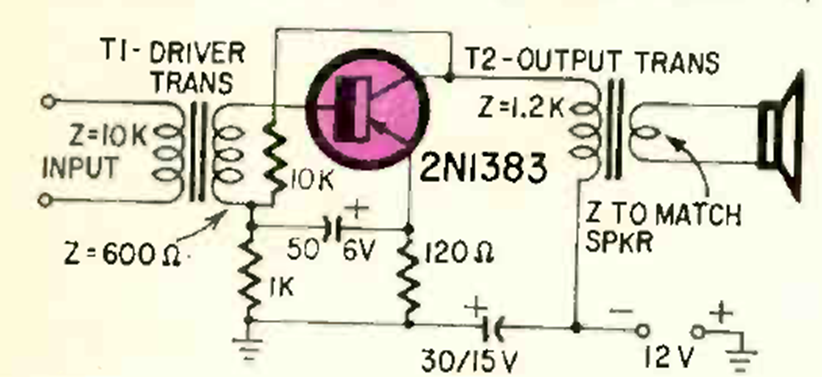

This circuit is from a Radio Electronics from October 1963. The transistor is a power transistor of the time, and two transformers are used. The input has 10k impedance and is powered by 12 V.




| Clique na imagem para ampliar |
