Electronic voltmeter (CB23755E)

Details
Written by: Newton C. Braga

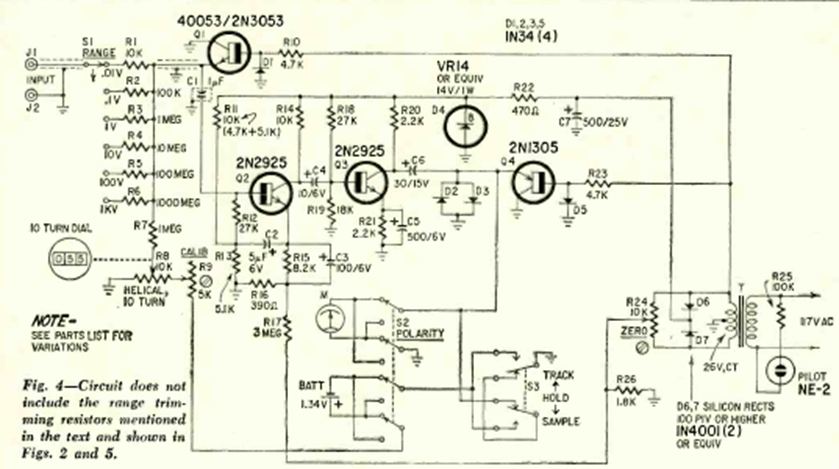

This circuit was found in Radio Electronics magazine from August 1966. The transistors are from the time and the power supply from the power grid is included.
