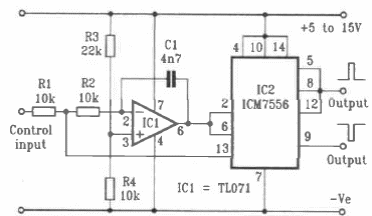

Voltage controlled oscillator with the ICM7556 (CB22369E)
- Details
- Written by: Newton C. Braga
The integrated circuit used is a dual 555 CMOS. The circuit is from an English documentation and the frequency basically depends on C1.
