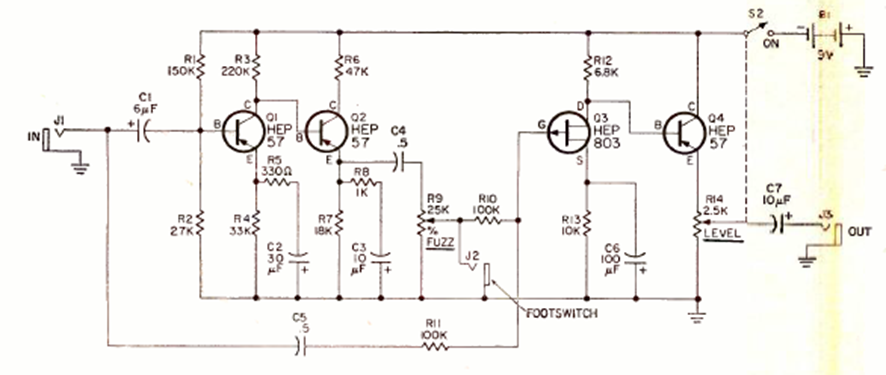

This sound effect circuit is from a Radio Electronics magazine from December 1969. The transistors support equivalents and the power is provided by a battery to reduce the possibility of noise.
| Clique na imagem para ampliar |
Fuzz (CB23988E)
