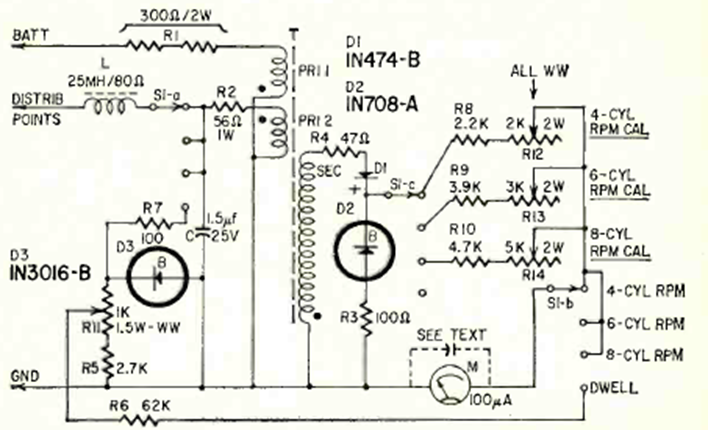

Dwell meter is the English name given to the opening angle meters of old plated cars. We found this circuit that combines the two meters in a Radio Electronics from March 1965. The circuit uses an analog instrument.
| Clique na imagem para ampliar |
Tachometer and opening angle meter (CB23639E)
