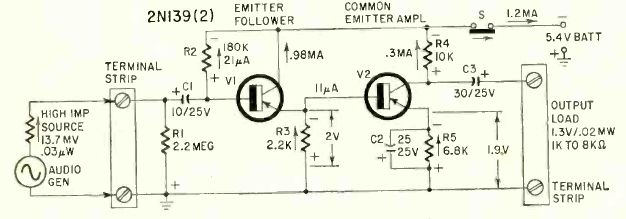

This circuit was obtained from the Radio Electronics magazine of August 1962. It is a tandem amplifier with two transistors for small signals. Power is supplied with the indicated voltage.
Small experimental amplifier (CB23835E)
- Details
- Written by: Newton C. Braga
