2 Transistor Radio (CB23668E)
- Details
- Written by: Newton C. Braga

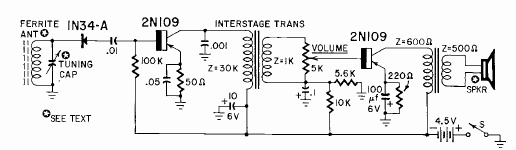

In the figure we have the diagram of a simple transistor radio for the medium wave band. The circuit was found in the magazine Radio Electronics from April 1960.
