Micro amplifier (CB23733E)

Details
Written by: Newton C. Braga

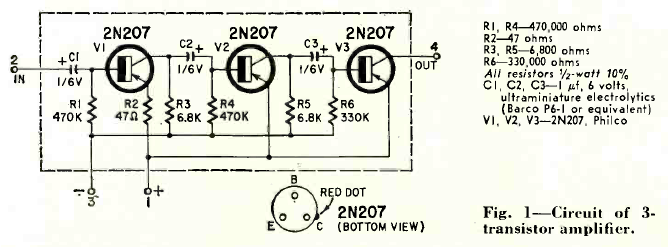

This direct coupled amplifier using 3 transistors and low voltage power was found in the April 1961 Radio Electronics magazine.
