2-stage amplifier (CB23761E)

Details
Written by: Newton C. Braga

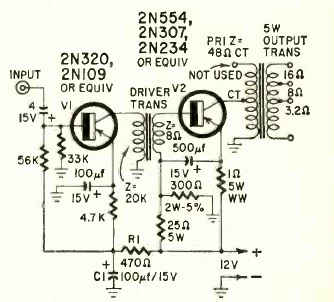

This 5 W power circuit with just two transistors was published in Radio Electronics magazine in July 1961. The circuit is powered by a 12 V source or battery.
