SCR full-wave switch (CB23951E)

Details
Written by: Newton C. Braga

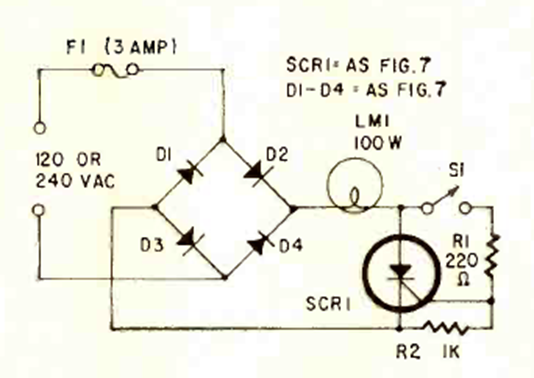

This full-wave switch has a slightly different configuration than the previous one. We found it in the Radio Electronics magazine of June 1968. The diodes and the SCR are according to the controlled load.
